This guide explains the features and practical uses of the Ball by Ball panel which provides a detailed running log of every delivery in an innings.
Scroll to the bottom of the page to view a video summary of the functions described in this guide.

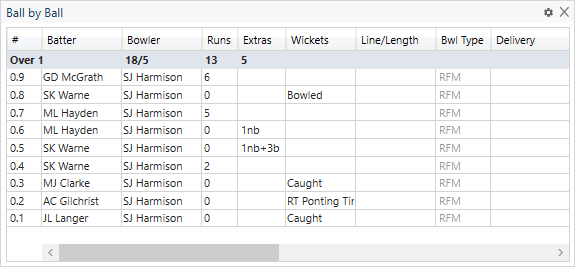

Panel Location and Overview
The Ball by Ball panel (View > Scorecard Data > Ball by Ball) is typically located to the left of the Main Scoreboard panel when using a default Scoring view (View > Scoring - Default or View > Scoring - All Coding).
To show or hide columns on this panel, click the cog icon in the top-right corner of the panel and then choose from the list of columns.
The Ball by Ball panel displays all deliveries over an entire innings with each ball scored on a separate row. Deliveries are displayed in reverse order, with the most recent ball at the top.
Each entry includes:
- Over and ball number.
- The names of the batter and bowler involved.
- Time the delivery was recorded.
- A video link to the delivery (if cameras are used).
A shaded (grey background) row is shown above each completed over, displaying the score at the end of the over and the total runs and extras in that over.
Delivery Snapshots
Click a previous delivery in the Ball by Ball panel to view its details (batter, bowler, runs) on the Play Control and the Scoring panels.
If you are in normal scoring mode, you may need to click the Start Ball or the Edit button on the Play Control panel to return focus to the current ball before continuing scoring.
Edit Balls
To edit a previous delivery's ball time, bowling type, to add or delete a ball, or inserts overs:
- Click the Edit button on the Play Control panel (highlights in yellow).
- Right-click the delivery you want to edit on the Ball by Ball panel.
- Click a ball edit, ball removal, ball addition or over insertion option from the menu that opens.
- Complete the edit or action. If needed, click Save, Done, or Insert.
When in Edit mode, you can also click a ball in the list and then choose a new score for the ball from the Scoring panel. Click the Edit button again to save your edit and return to scoring mode.
Practical Uses
Use the Ball by Ball panel to:
- Review specific deliveries in discussion with a colleague.
- Select a delivery to amend in Edit mode (using the Edit button on the Play Control panel).
You can also use the Ball by Ball panel to manually add balls to a highlights package.
